PMU Needle Diameter vs. Taper: A Practical Guide to 0.25 and 0.30 mm

PMU needle diameter is the width of an individual needle shaft; taper describes the narrowing section toward its point. A 0.25 mm needle is not automatically a better detail tool than every 0.30 mm needle, because diameter is only one part of the cartridge configuration. Grouping, taper, the cartridge design and the working setup still need to be considered.

The useful question is not simply “Which size is best?” It is “Which complete configuration am I comparing, for which task, and what do my practice observations actually support?” This guide helps you read specifications, avoid misleading comparisons and prepare a better enquiry before ordering.

The practice framework below is for artificial practice materials. It does not provide treatment depths, voltage prescriptions or a protocol for testing unfamiliar equipment on clients.

Start with four measurements that are easy to confuse

Put each measurement in its own field when you record a setup. “I use a 0.30 needle at a 3 mm setting” is incomplete unless the second number is identified. A taper length, a machine stroke and protrusion can all be expressed in millimetres, but they describe different things.

Manufacturer catalogues illustrate why separating the fields matters. Nouveau Contour's 1-point 0.30 MT listing, for example, specifies a 0.30 mm diameter and a 1.85 mm taper independently. That is a specification example, not a VOKAL configuration or a recommendation to copy its use.

What does 0.25 versus 0.30 mm actually change?

The stated diameter differs by 0.05 mm. Relative to 0.25 mm, the 0.30 mm shaft is 20% wider. This is a dimensional comparison only: it does not mean 20% more pigment delivery, a 20% wider healed line or 20% more skin trauma.

The numbers describe the shaft, not the whole task. Think about comparing two pens with different barrel widths: a measurement can identify one difference without establishing everything about the mark they produce. In the same way, a needle's nominal diameter does not isolate the effect of its point profile, grouping or the way the cartridge is being used.

For a useful first comparison, keep the grouping the same. Comparing a 0.25 mm single needle with a 0.30 mm single needle asks a much narrower question than comparing a 0.25 mm single with a multi-needle configuration. Even the single-to-single comparison is not diameter-only if the tapers or cartridge bodies differ.

Why taper deserves its own line on your order notes

Picture two simplified points made from shafts of the same diameter. One narrows over a shorter distance; the other narrows over a longer distance. Their profiles are different even though the diameter labels match. This geometric explanation helps define taper; it is not a model for calculating implantation or a skin-treatment recommendation.

When a product is described as long taper, ask for the actual taper information for that SKU rather than treating the category name as a complete specification. In some catalogues, a named taper is provided without its length. Mark the missing length as unconfirmed instead of borrowing a number from another manufacturer's chart.

This is especially important when replacing a familiar cartridge. Write down the configuration you used successfully, not just “0.30 RL.” If the replacement changes several features, you are evaluating a new setup rather than reproducing the old one.

Needle count and grouping are another decision

In common cartridge notation, 1RL identifies a single-needle round-liner configuration, while 3RL identifies three needles in a round-liner grouping. The number and arrangement should be recorded separately from the diameter. Do not assume that every number printed on packaging refers to the width of an individual needle.

Terezia Ridzonova's Permanent Make-Up Needles lesson uses label reading and an artificial-material comparison of 1RL, 3RL and 7RL as an educational exercise. The useful idea is to compare identified configurations in a practice setting. An educator's preference for one grouping is not proof that all other groupings are inferior.

Arrangement matters as well as count. Cheyenne distinguishes parallel Open Liner arrangements from its narrowing Power Liner arrangements. That illustrates why matching the needle count alone does not establish that two cartridge designs are equivalent.

Likewise, do not interpret VOKAL's 5U and 9U configuration names as 0.5 mm and 0.9 mm single-needle diameters, or treat a U configuration as a larger version of a 1RL. Request the full configuration, the individual diameter and the intended use guidance together. Confirm which version is available before ordering rather than relying on a shorthand name from an old message.

A decision sequence for comparing 0.25 and 0.30

First, describe the task

For practice, choose a task you can assess clearly: separate short lines, repeated curves or a small shading field. “Better brows” is too broad for a useful equipment comparison. “I want more consistent starts and finishes in repeated practice lines” gives you something to observe.

Choose one primary question and one secondary question. For example: how consistent are the line edges, and how often do I interrupt the movement to reload? Neither observation is a clinical outcome, but both can make your next training discussion more specific.

Second, identify what is actually different

Put the two cartridge specifications side by side. If diameter, taper, grouping and housing all change, write “complete-configuration comparison.” Do not label the exercise a diameter test. There is nothing wrong with comparing complete products; the problem is attributing every difference to a single number.

If a field is missing, ask for it or leave it unknown. A complete-looking table filled with assumptions is less useful than an honest table with two blanks.

Third, compare within a familiar, compatible setup

Use the machine and practice method covered by your training and the relevant equipment instructions. Confirm cartridge compatibility before running it. A connector that appears to fit is not, by itself, a full compatibility check for a particular machine and cartridge combination.

Do not compensate for an unclear result by changing every setting at once. Record any adjustment, including a change of machine, practice material or pigment. Otherwise, a difference you later attribute to a needle may belong to a different part of the setup.

A structured artificial-material practice session

The following is an editorial learning framework, not a calibrated performance test. Use fresh, appropriately handled supplies and keep practice equipment separate from items intended for client procedures.

Prepare comparable areas. Label two sections of the same practice sheet A and B. Use the same simple pattern in both sections. Keep the surface, pigment product, support and viewing arrangement comparable, and record anything that changes.

Use repeated examples rather than one perfect line. Compare a small series of the same movement. Save the ordinary attempts as well as the best one. Selecting only the most flattering mark from each cartridge makes the exercise a presentation, not a useful record of consistency.

Observe specific features. Look at starts, finishes, continuity and visible variation across the repeated pattern. Record reload interruptions and any difficulty maintaining your familiar movement. Do not turn a dot count or photograph into a clinical trauma score.

Separate result from explanation. “A produced more consistent curves in this session” is a bounded observation. “A is better for every client's skin” is a different claim that this exercise cannot establish.

Bring the record into training. Share the complete pattern, identified cartridges and setup notes with your educator. Ask which variable should be examined next. That is more productive than sending a cropped line and asking for a universal voltage.

Copy this comparison worksheet

Keep a dated photograph of the whole sheet with the worksheet. This gives you a traceable practice history without pretending that artificial material reproduces a client's skin or healing.

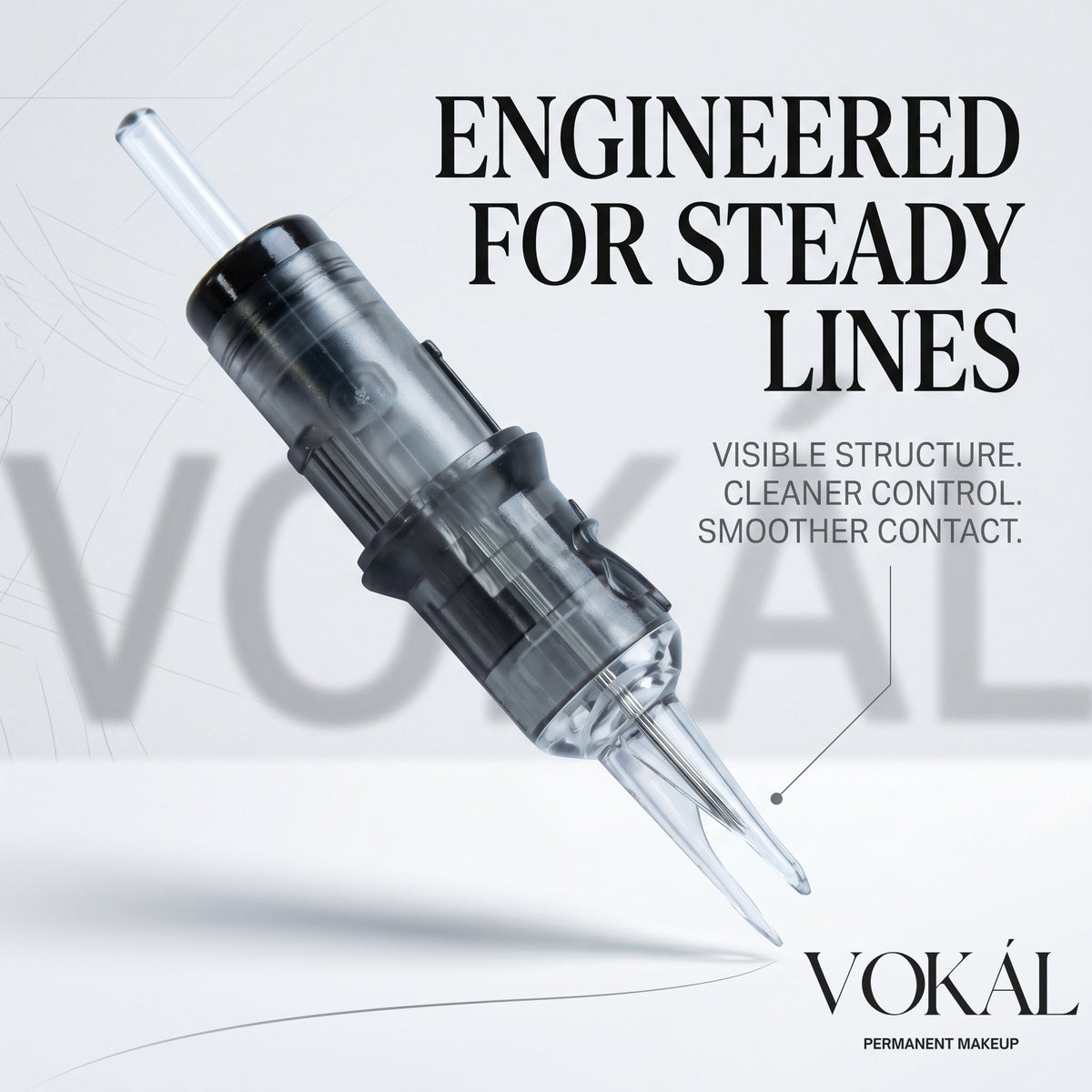

How VOKAL One Pass fits into the comparison

VOKAL One Pass is a cartridge design, not simply a diameter label. Its published product information identifies a support backrest, a needle-wall pigment-storage design and a transparent tip. These are features to consider alongside the requested needle configuration.

For example, if you change from a familiar conventional cartridge to One Pass, your comparison includes the cartridge structure as well as any diameter or taper difference. Record it that way. The support feature is not a substitute for training, and the product name should not be interpreted as a guarantee that every procedure takes one pass.

When enquiring, send your machine's exact model, the needle configuration you currently use and the task you are trying to improve. Ask VOKAL to confirm the current specification and the appropriate learning materials for the configuration under consideration. This creates a useful product conversation instead of a guess based on “fine” or “nano.”

Before you order: five details worth confirming

Exact configuration: obtain the SKU, needle count, arrangement, individual diameter and available taper information. Machine pairing: confirm the named machine model, not just that both products are described as universal. Product instructions: review handling and intended-use information. Packaging: check the supplied batch, expiry and package integrity as applicable. Learning support: identify the demonstration or training that explains the cartridge you will actually use.

VOKAL describes One Pass as a single-use cartridge. Do not reuse a cartridge used for practice on a client. Follow the product instructions and your professional infection-control procedures for handling and disposal.

Frequently asked questions

Is 0.25 mm always the best choice for fine hairstrokes?

No universal choice follows from that number alone. Compare the complete configuration and your trained control of it. A suitable practice record is more informative than a ranking based only on nominal diameter.

Does a long taper mean I should expose more needle?

No. Taper and protrusion describe different features. Do not convert a taper length into an exposure or implantation setting. Use the instructions and training for your particular equipment.

Can I keep exactly the same settings when changing cartridges?

Do not assume that matching diameter makes two cartridges equivalent. Confirm compatibility and evaluate the new configuration within an appropriate practice and training process. This guide does not prescribe a universal setting.

Where should I start with VOKAL?

Review the One Pass product details and prepare the configuration questions above. For help interpreting your practice work, discuss your experience and goals with the VOKAL training team.

The takeaway: compare diameter with diameter, taper with taper and complete systems with complete systems. A clearly identified configuration and a repeatable practice record are a better starting point than buying by one number.
